PRESS-FIT BB86 86mm (Road) : 3-in-1
◆ TRiPEAK PRESS-FIT BB (Plastic Cup )
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
$50~110
WHERE TO BUY
INQUIRY

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.



The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.



The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

BB86 86mm (Road) : 3-in-1
 Type Road Bike

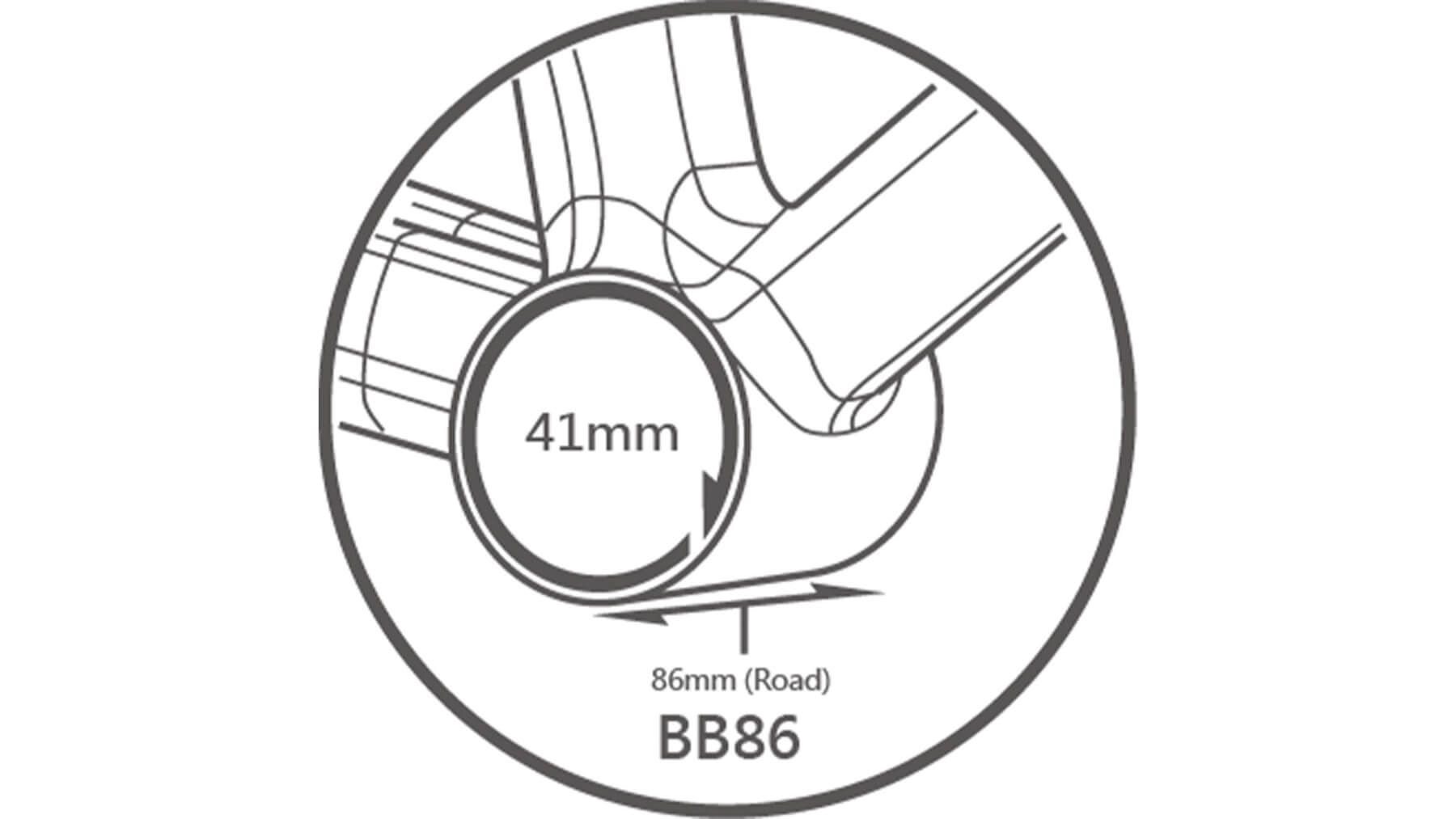

 Frame Spec BB86
 DIA.41mm x Width 86mm
 Crank Spec SHIMANO HTII (dia.24mm)
 SRAM DUB (dia.28.99mm)
 ROTOR 3D+ (dia.30mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Material Cup : PA+GF composite material
 Sleeve : PA+GF composite material
 Accessories 30mm Cap*2
 28.99mm Cap*2
 28.99mm Spacer*1 (Drive Side)
 24mm Cap*2
 Color Black
 Weight G5 : 47g/set (w/o cap)
 P05 : 50g/set (w/o cap)

TRiPEAK PRESS-FIT BB Installation-For BB86/92-ROAD 3in1 Core System
Manual PDF Download
