BB86 86/92mm HTII (Road & MTB)
◆ For SHIMANO HTII Crank Set (dia.24mm)
◆ G5 Ceramic Bearing / P05 Steel Bearing
◆ ZeroCreak Eliminate Noise Disturbances
◆ Patented Twist-Fit Design
◆ 16 Notch Standard BB Tool
$90~130
WHERE TO BUY
INQUIRY

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.



The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.



Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.

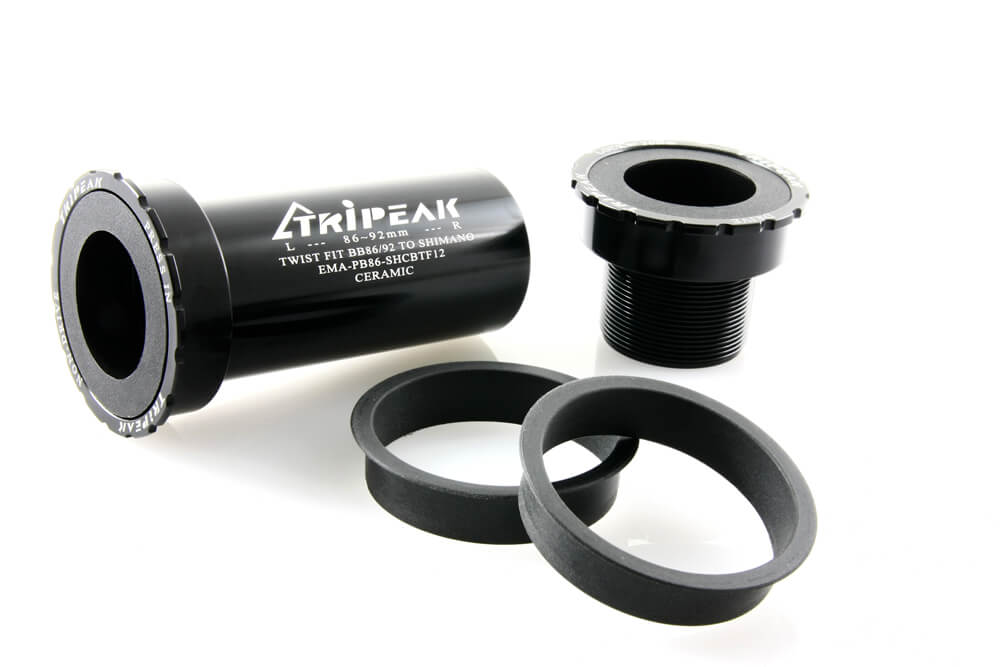

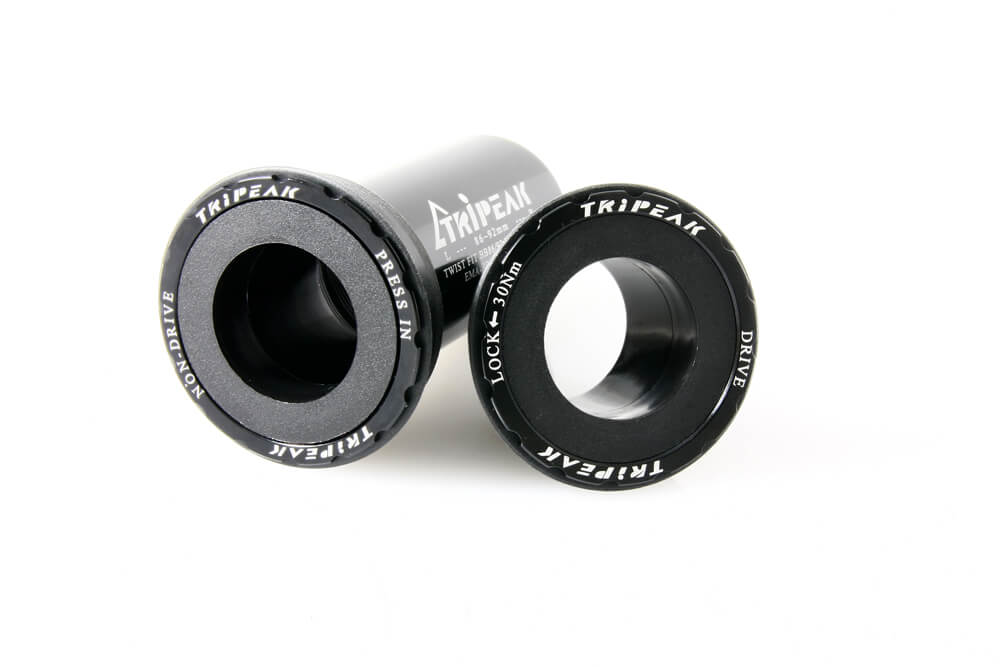

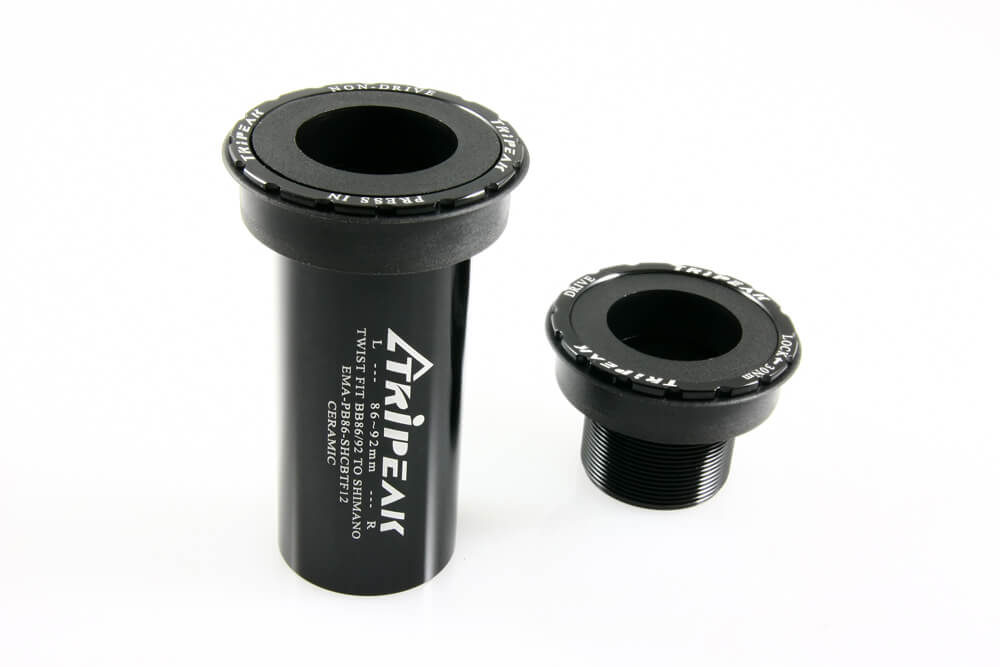

The Twist-Fit design accomodates  press-fit BB specificied frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.

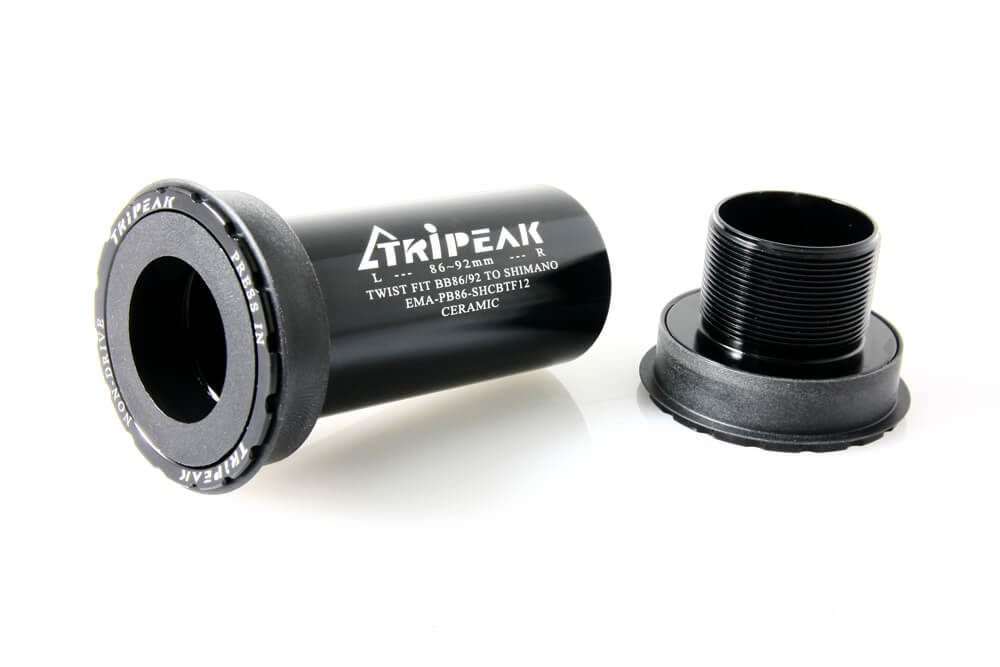

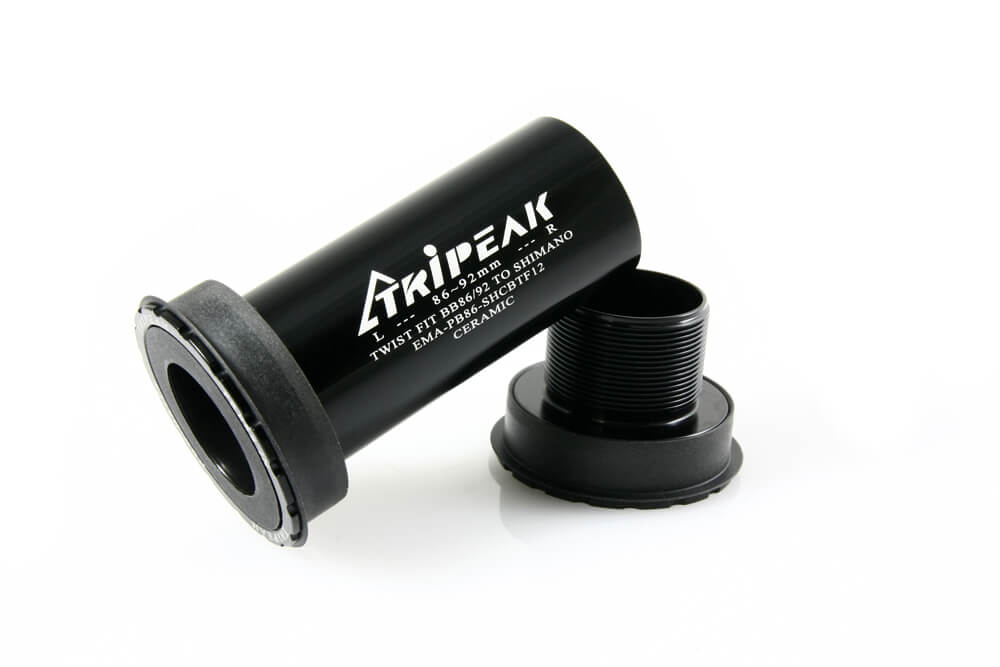

The patented plastic-steel bushing design is a big relief for Press-Fit frame BB users. It prevents wear on the frame's bottom bracket shell when the BB is pressed in. Snug Fit effectively eliminates noise and corrects bottom bracket tolerances.

BB86/92 (Road & MTB)
 Type Road Bike & Mountain Bike

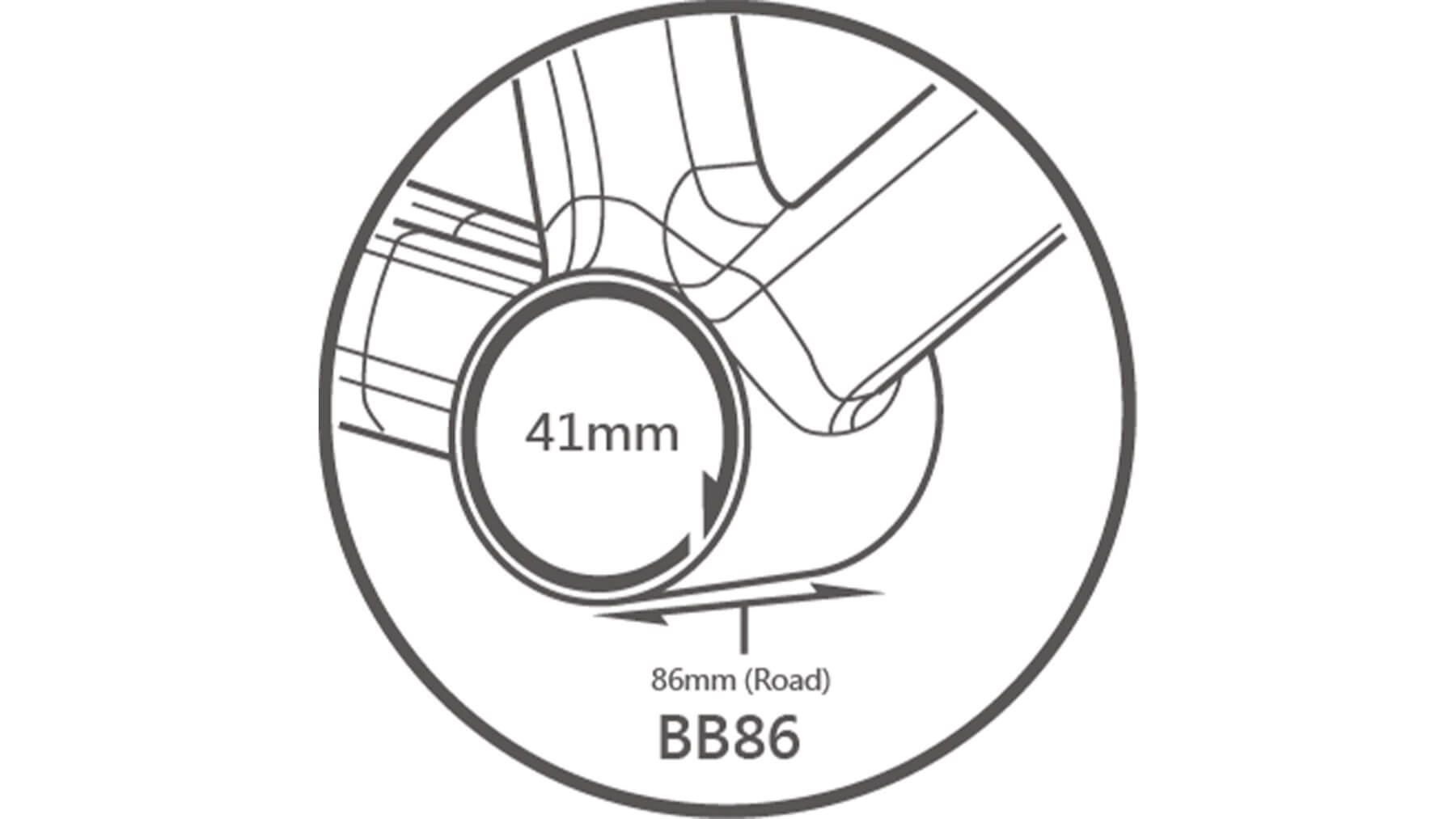

 Frame Spec BB86/92
 DIA.41mm x Width 86/92mm
 Crank Spec SHIMANO HTII (dia.24mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Tool Notch Notch : 16T
 O.D. : 44mm
 Material Cup : Alloy 6061
 Snug Ring : PA+GF composite material
 Color Black
 Weight G5 : 96g/set
 P05 : 102g/set

TRiPEAK TWIST-FIT BB Installation-For BB86/92-SHIMANO HTII
Manual PDF Download
