PRESS-FIT BB86 86/92mm (Road & MTB)

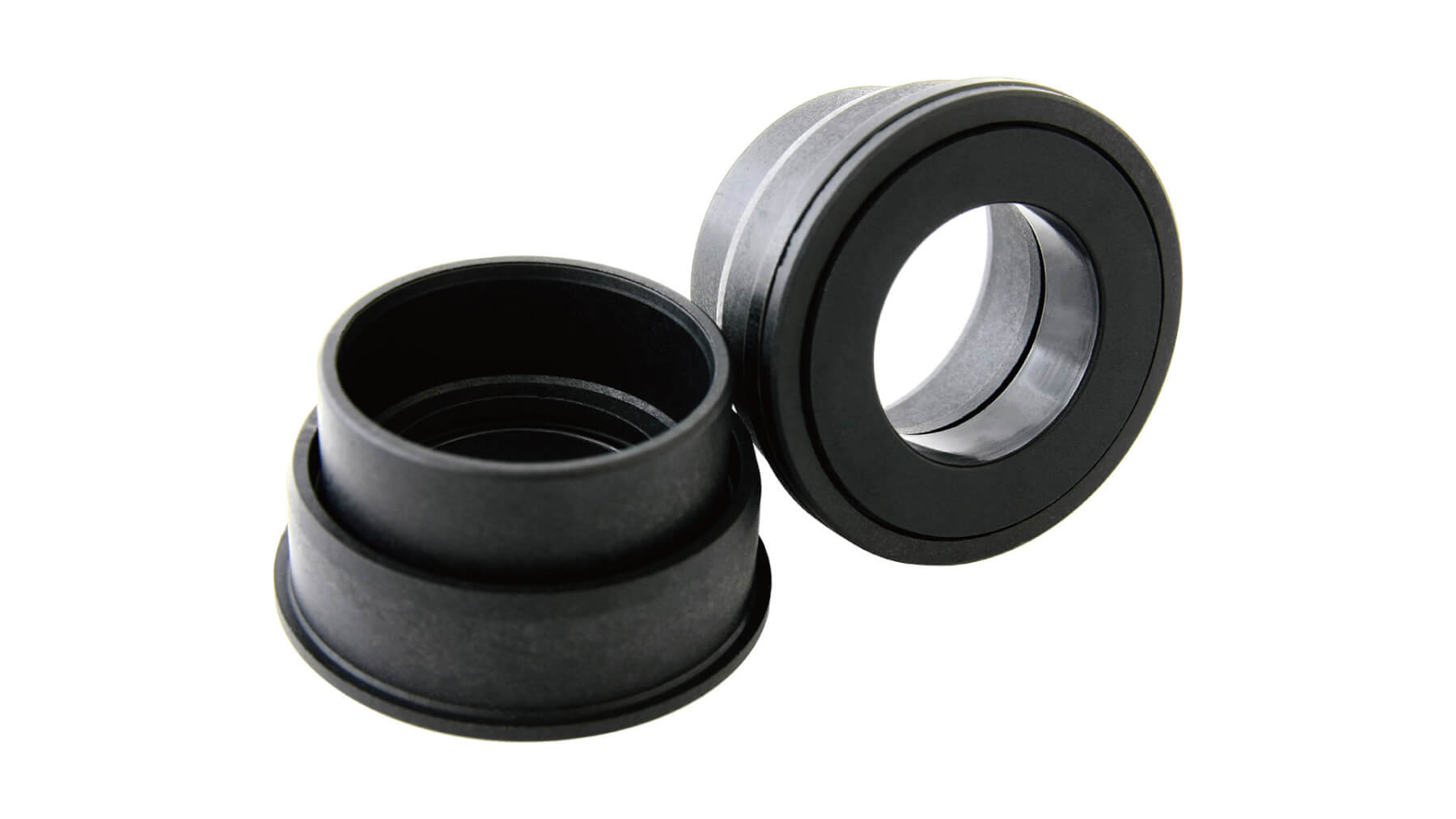

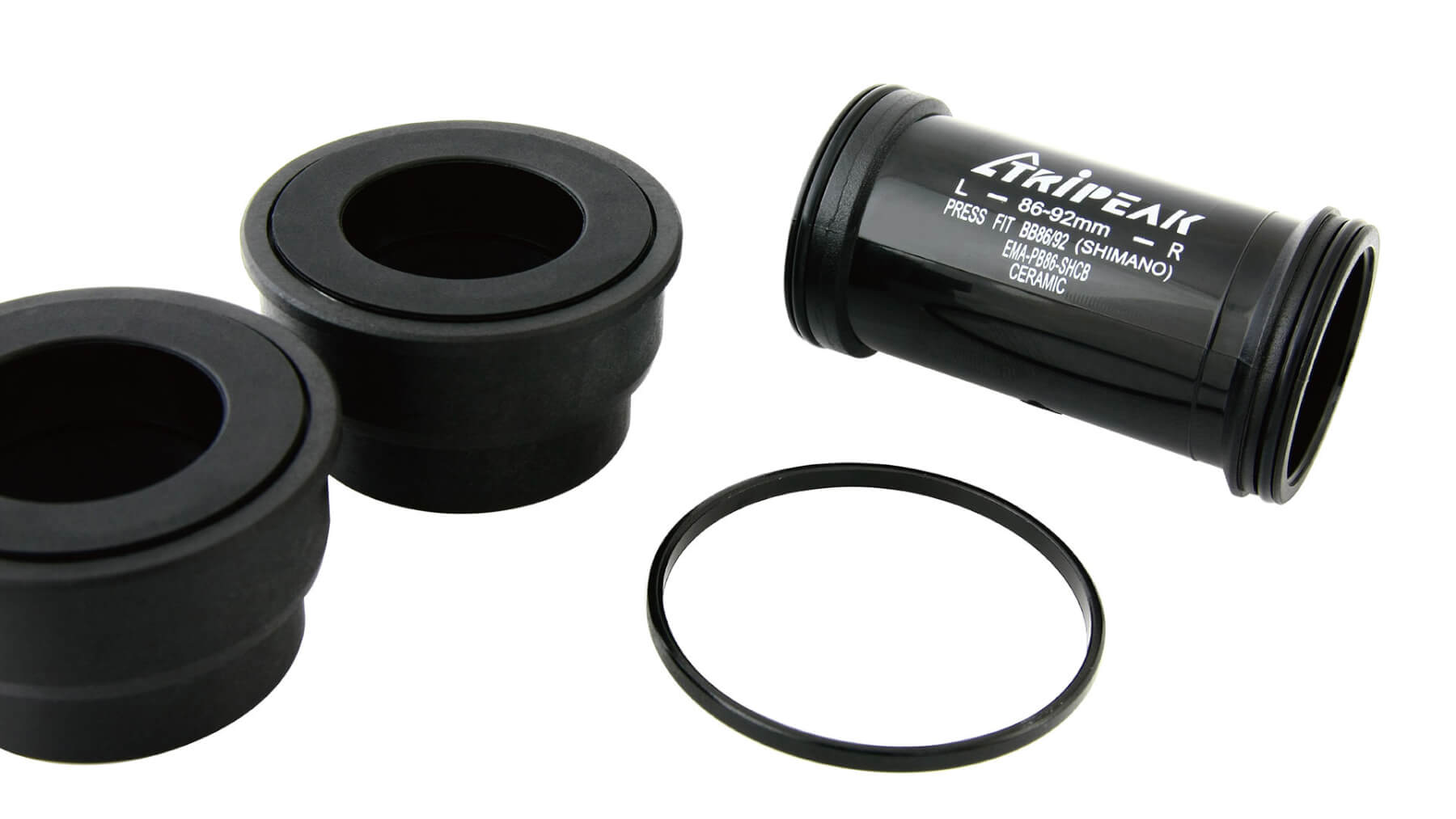

◆ TRiPEAK PRESS-FIT BB (Plastic Cup )
◆ For SHIMANO HTII Crank Set (dia.24mm)
◆ G5 Ceramic Bearing / P05 Steel Bearing
$40~80
WHERE TO BUY
INQUIRY

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.

The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.



BB86 86/92mm (Road & MTB)
 Type Road Bike & Mountain Bike

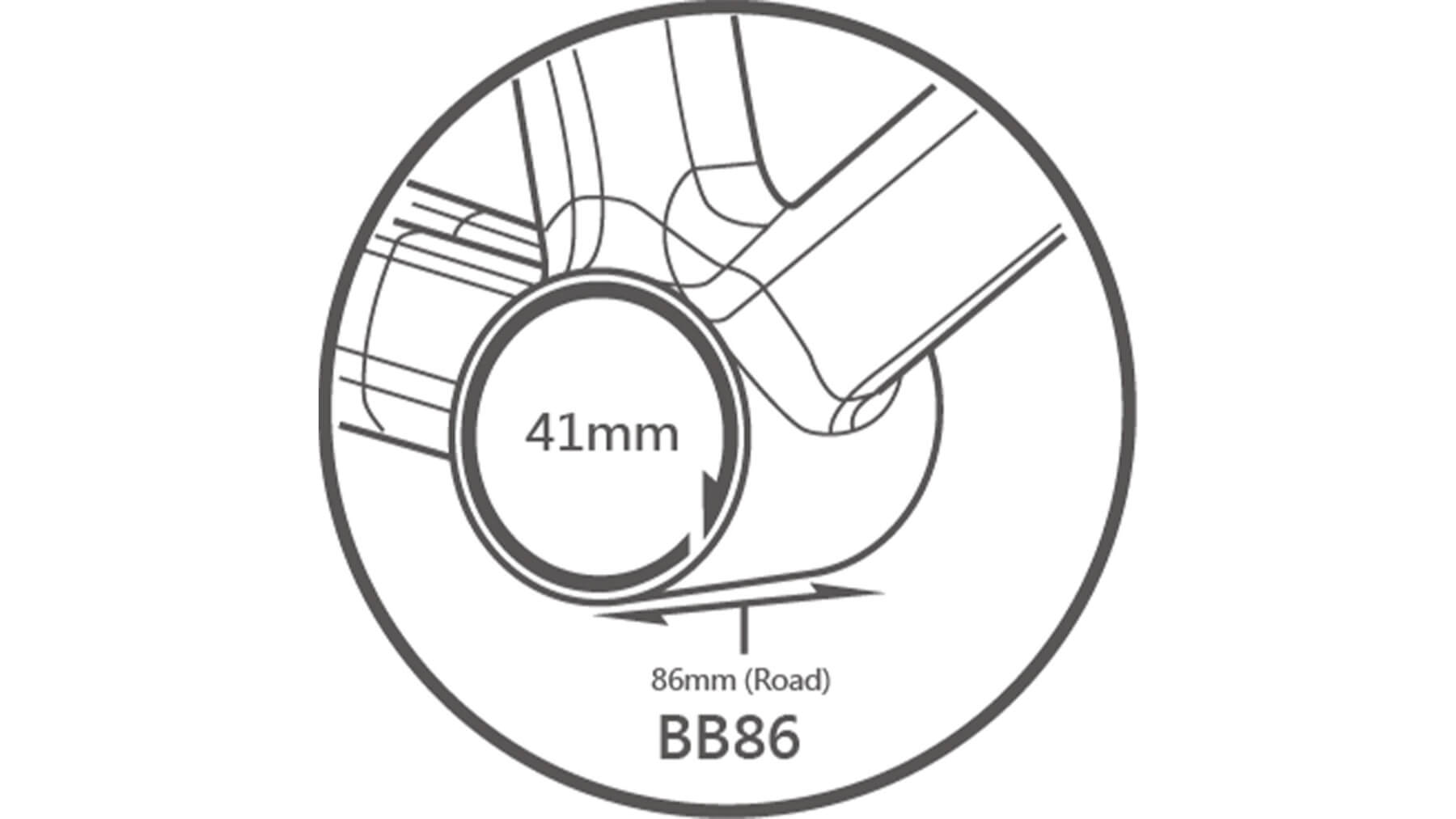

 Frame Spec BB86
 DIA.41mm x Width 86/92mm
 Crank Spec SHIMANO HTII (dia.24mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Material Cup : PA+GF composite material
 Sleeve : PA+GF composite material
 Accessories 2.5mm Spacer*1 (Drive Side)
 Color Black
 Weight G5 : 72g/set
 P05 : 78g/set

TRiPEAK PRESS-FIT BB Installation-For BB86/92 SHIMANO HTII
Manual PDF Download
