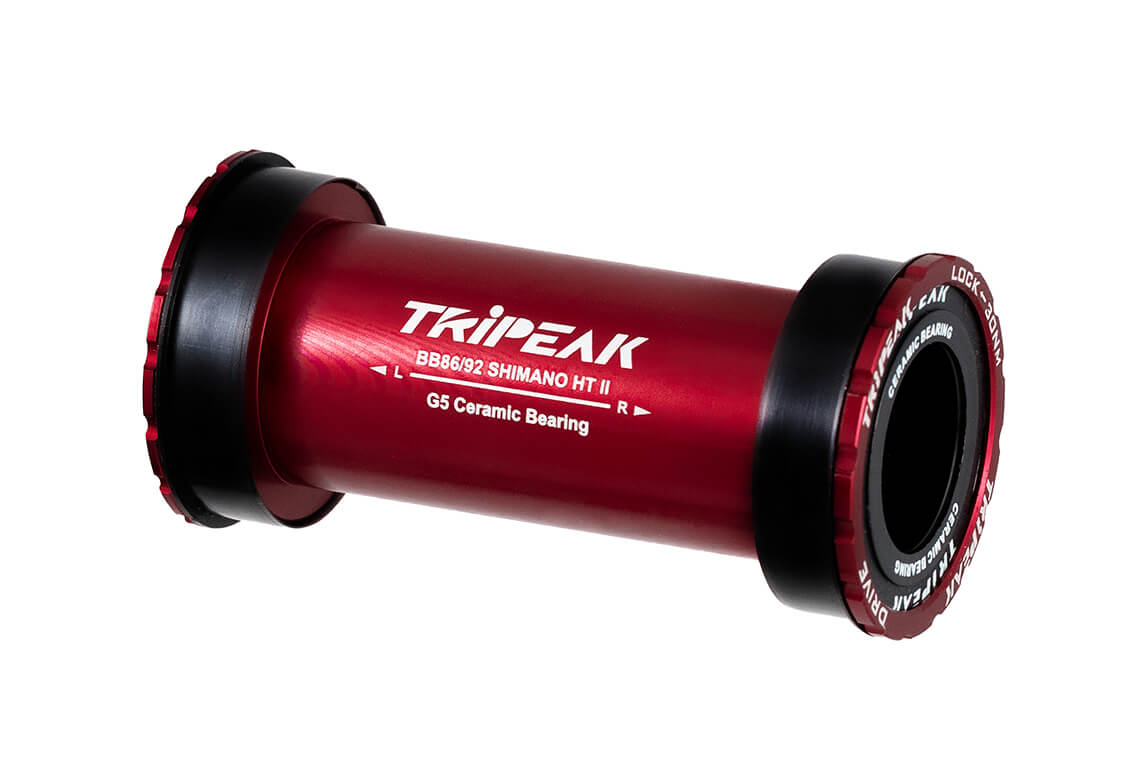

BB8692SHIMANOHTIIRed

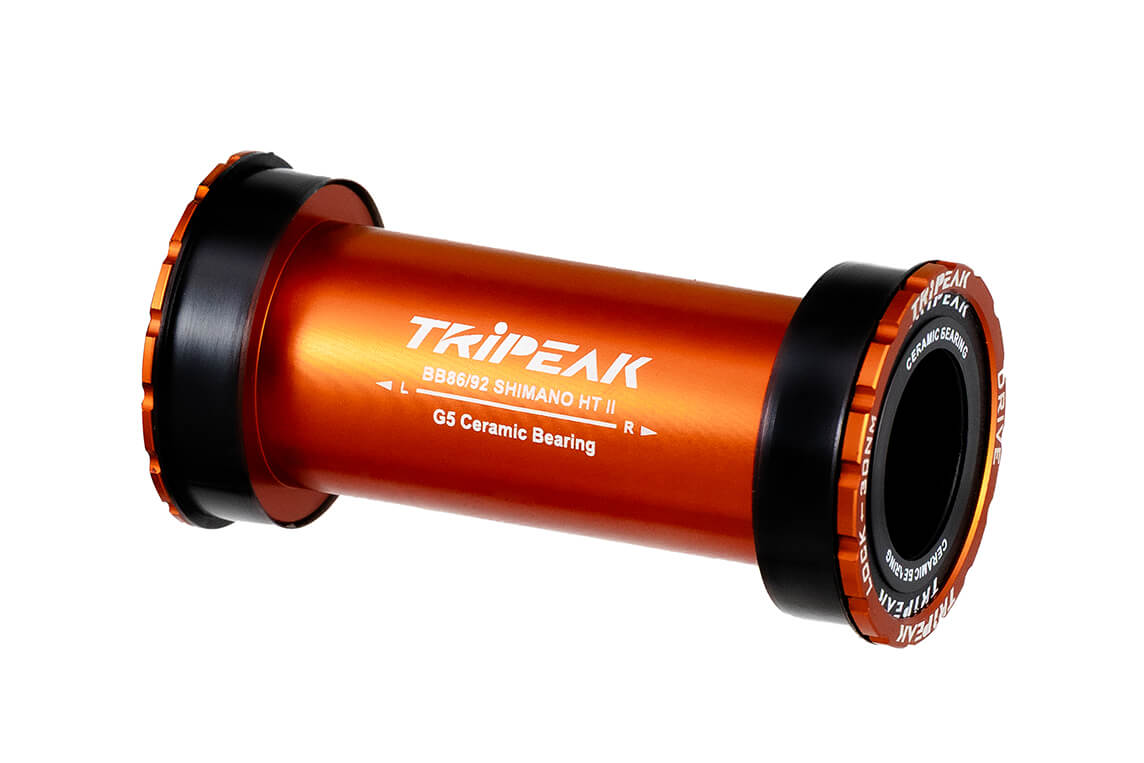

BB8692SHIMANOHTIIOrange

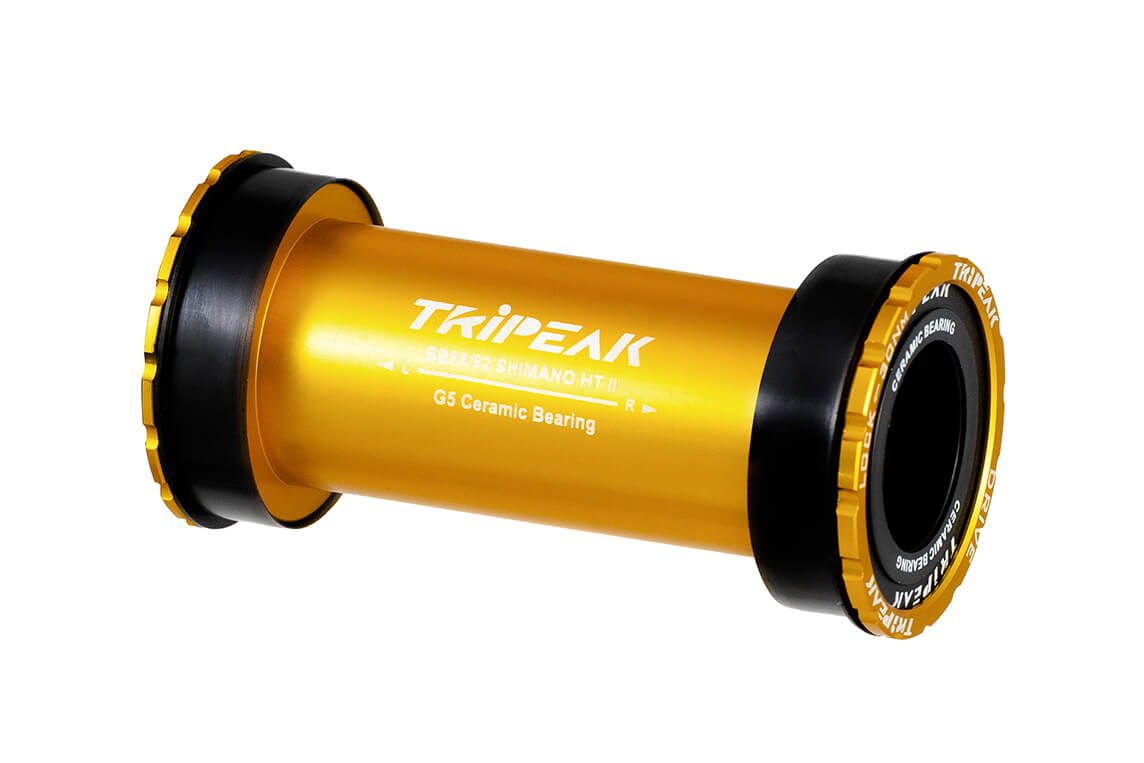

BB8692SHIMANOHTIIGold

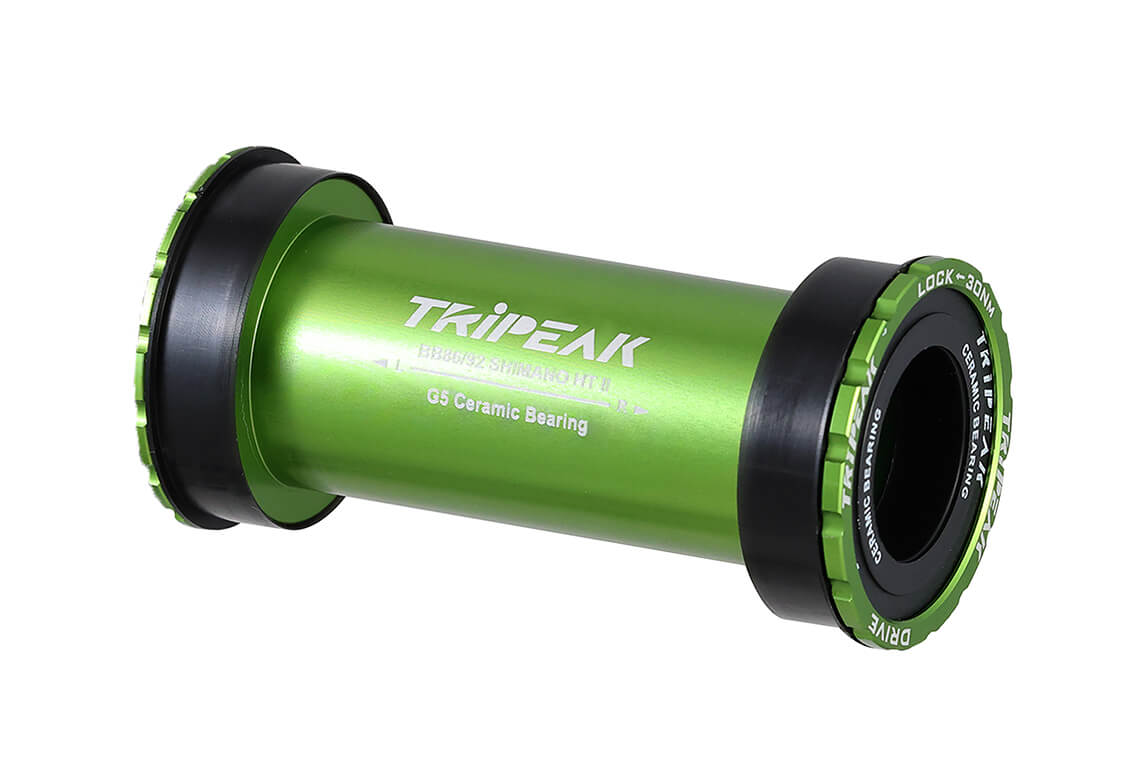

BB8692SHIMANOHTIIGreen
BB8692SHIMANOHTIIBlue

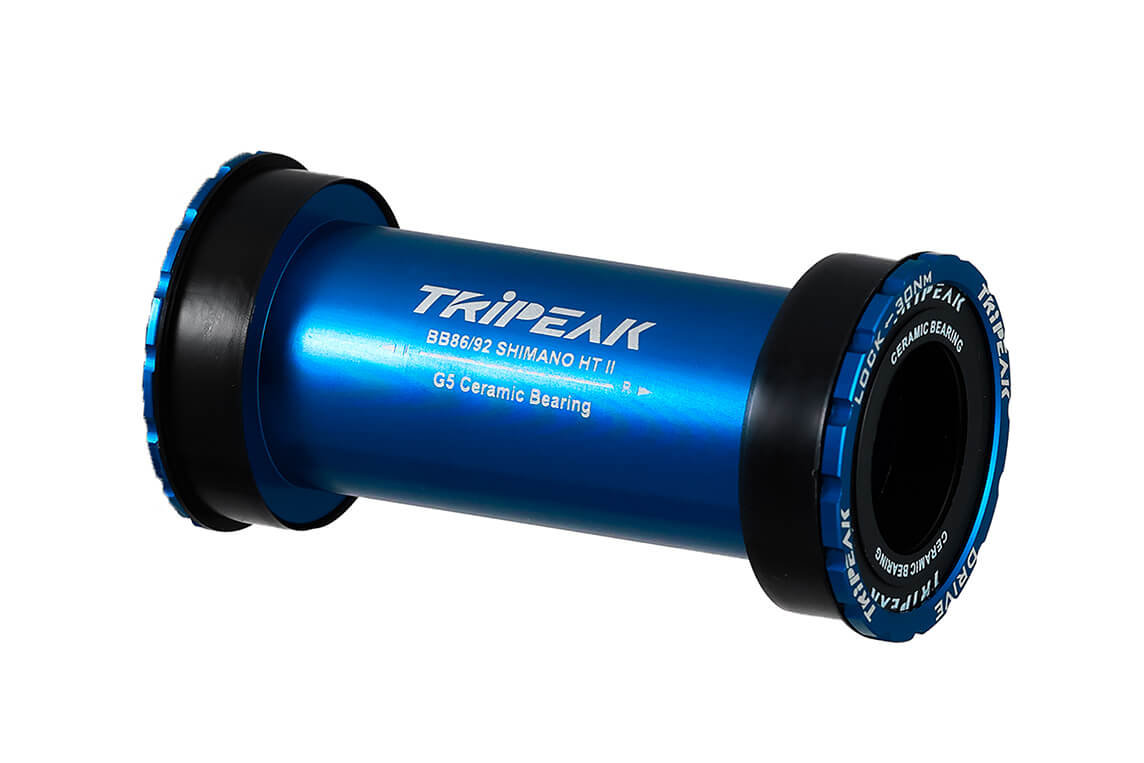

BB8692SHIMANOHTIIDeepBlue

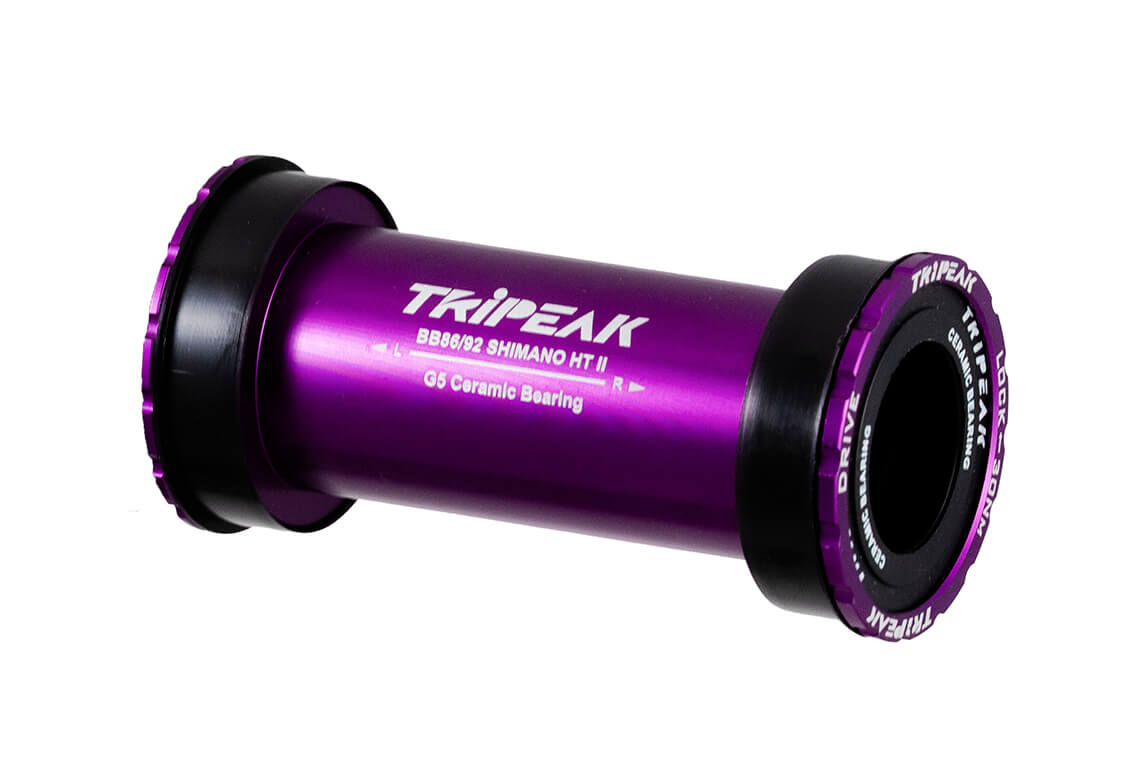

BB8692SHIMANOHTIIPurple

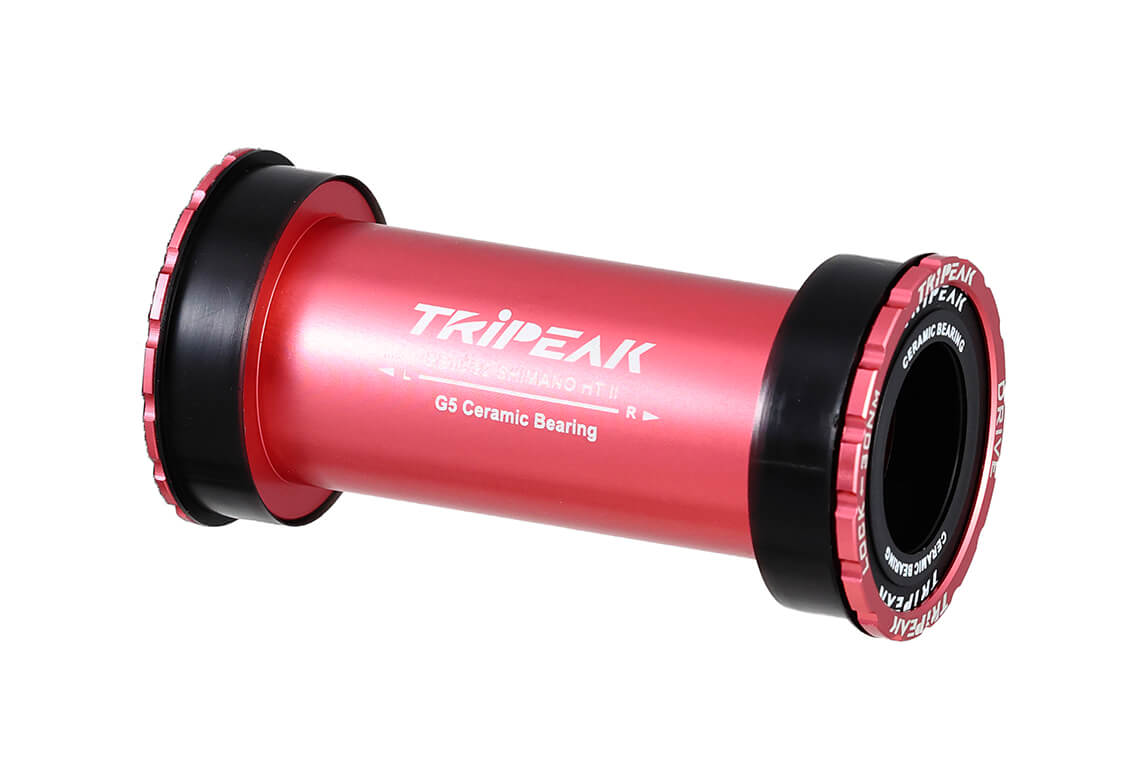

BB8692SHIMANOHTIIPink

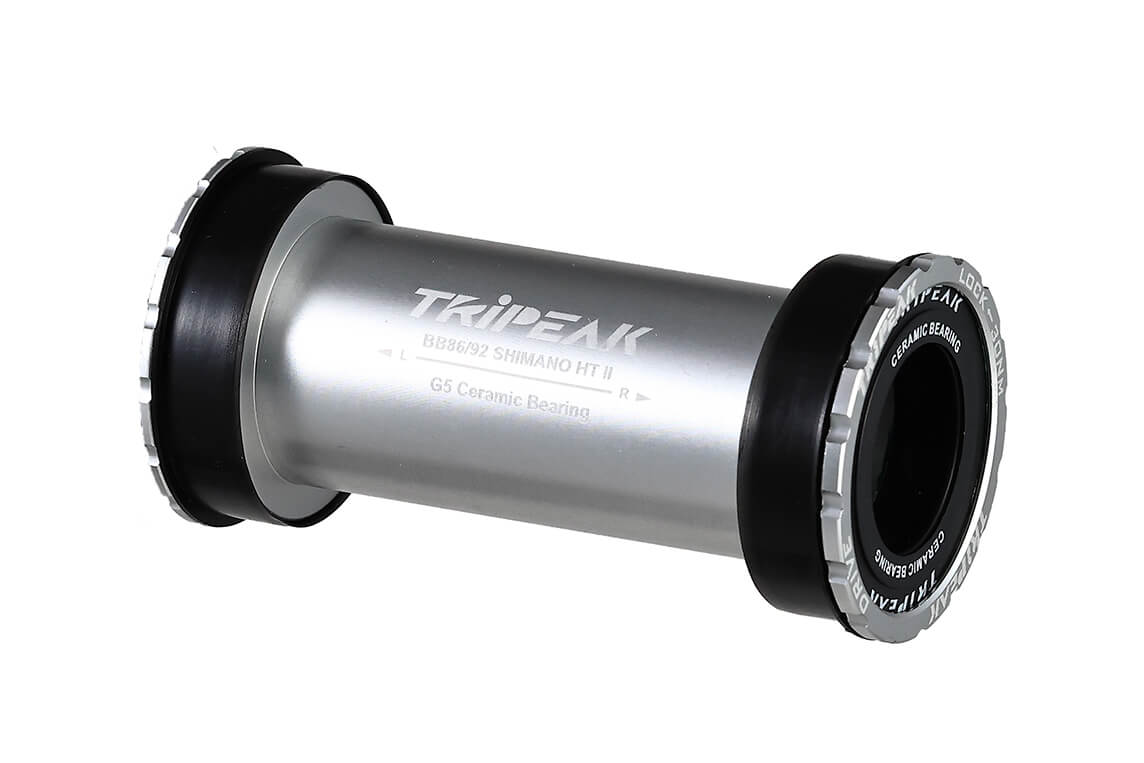

BB8692SHIMANOHTIISliver
250910101230
BB8692SHIMANOHTIIRed
BB8692SHIMANOHTIIOrange
BB8692SHIMANOHTIIGold
BB8692SHIMANOHTIIGreen
BB8692SHIMANOHTIIBlue
BB8692SHIMANOHTIIDeepBlue
BB8692SHIMANOHTIIPurple
BB8692SHIMANOHTIIPink
BB8692SHIMANOHTIISliver

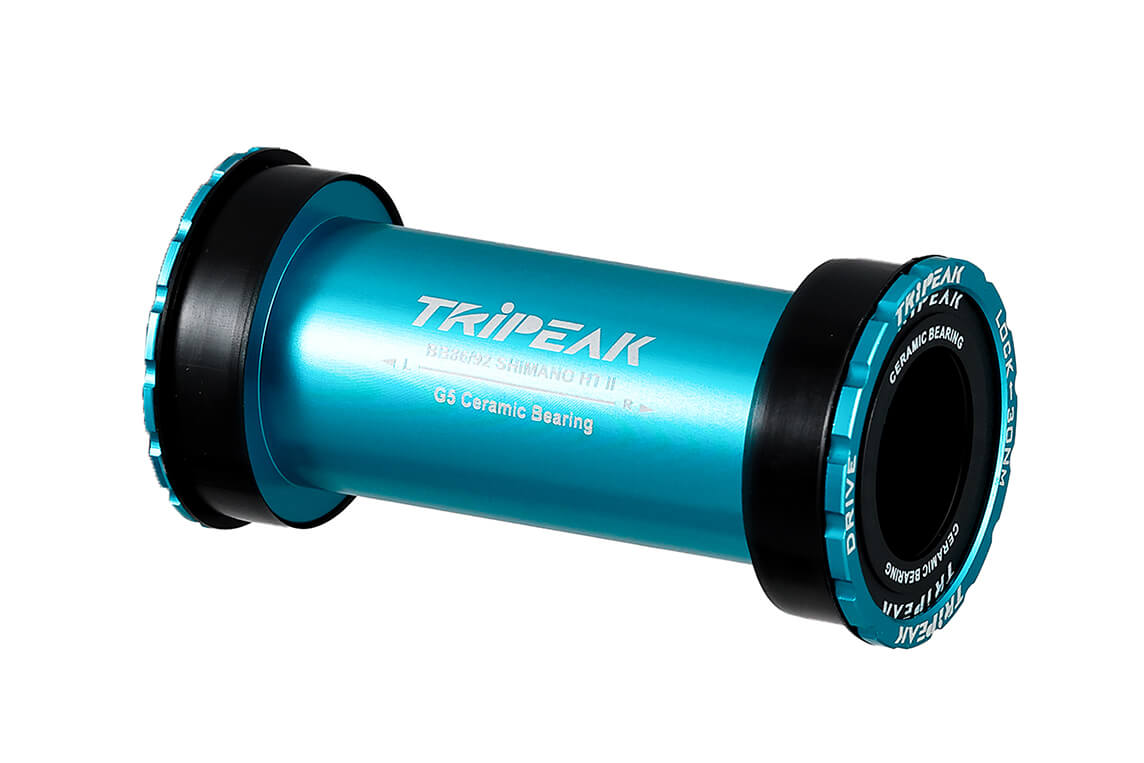

BB86 86/92mm HTII
◆ For SHIMANO HTII Crank Set (dia.24mm)
◆ G5 Ceramic Bearing
◆ ZeroCreak Eliminate Noise Disturbances
◆ Patented Twist-Fit Design
◆ 16 Notch Standard BB Tool
$130
WHERE TO BUY
INQUIRY

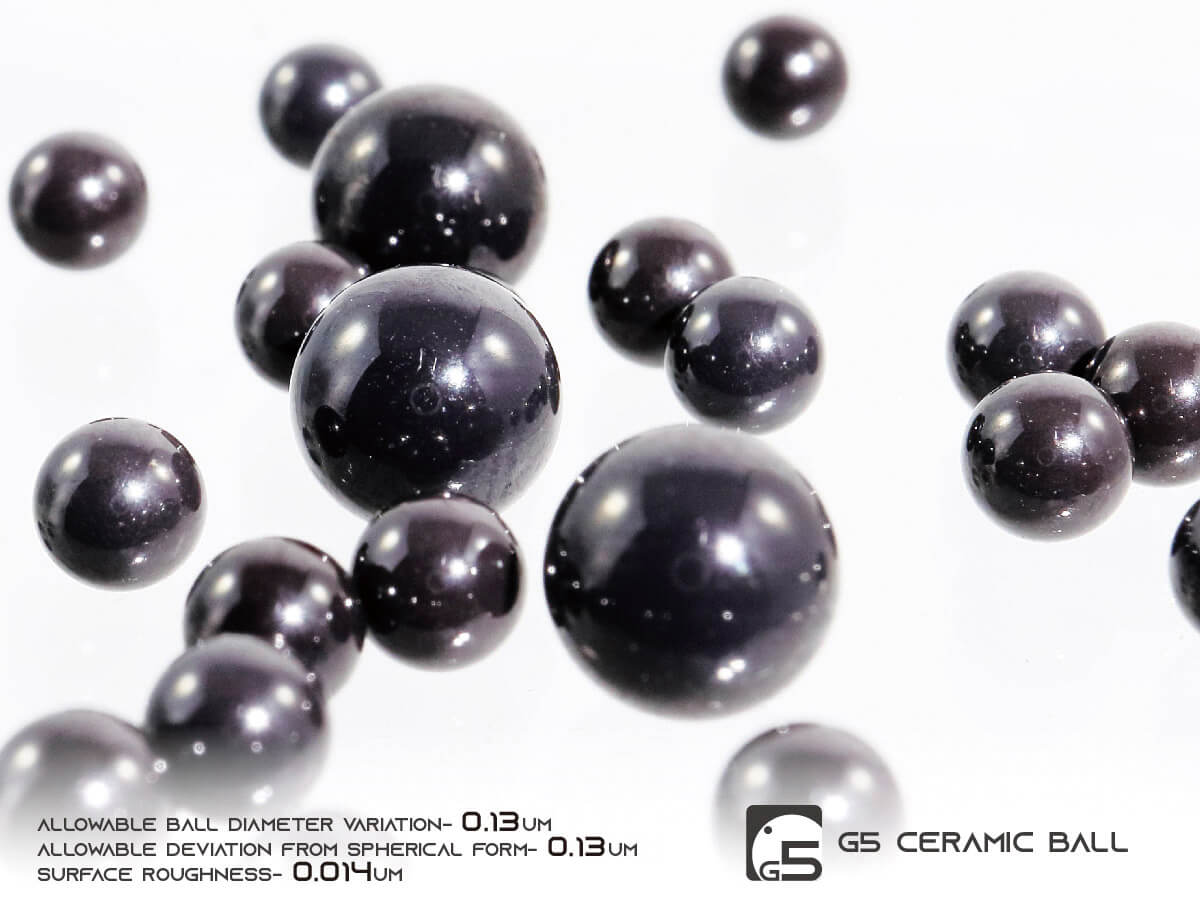

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.

Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.

The Twist-Fit design accomodates  press-fit BB specificied frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.

The patented plastic-steel bushing design is a big relief for Press-Fit frame BB users. It prevents wear on the frame's bottom bracket shell when the BB is pressed in. Snug Fit effectively eliminates noise and corrects bottom bracket tolerances.

BB86/92 (Road & MTB)
 Type Road Bike & Mountain Bike
 Frame Spec BB86/92
 DIA.41mm x Width 86/92mm
 Crank Spec SHIMANO HTII (dia.24mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Tool Notch Notch : 16T
 O.D. : 44mm
 Material Cup : Alloy 6061
 Snug Ring : PA+GF composite material
 Color Black
 Weight G5 : 96g/set
 P05 : 102g/set
